Dune
Conventional speakers are fundamentally limited by flat wooden panels. These parallel walls bounce sound back and forth like shouting down a hallway, creating muddy distortion. To see if FDM 3D printing could outperform this traditional design, I utilized additive manufacturing freedom to replace flat panels with organic, acoustically optimized curves. Backed by material testing, this project proves that printed geometry can structurally, technically, and aesthetically surpass conventional wood.
Can FDM lead to a better speaker?
Date
Duration
Category
Skills
2026.
1 month.
Audio.
3D Printing, Rhino, Keyshot.

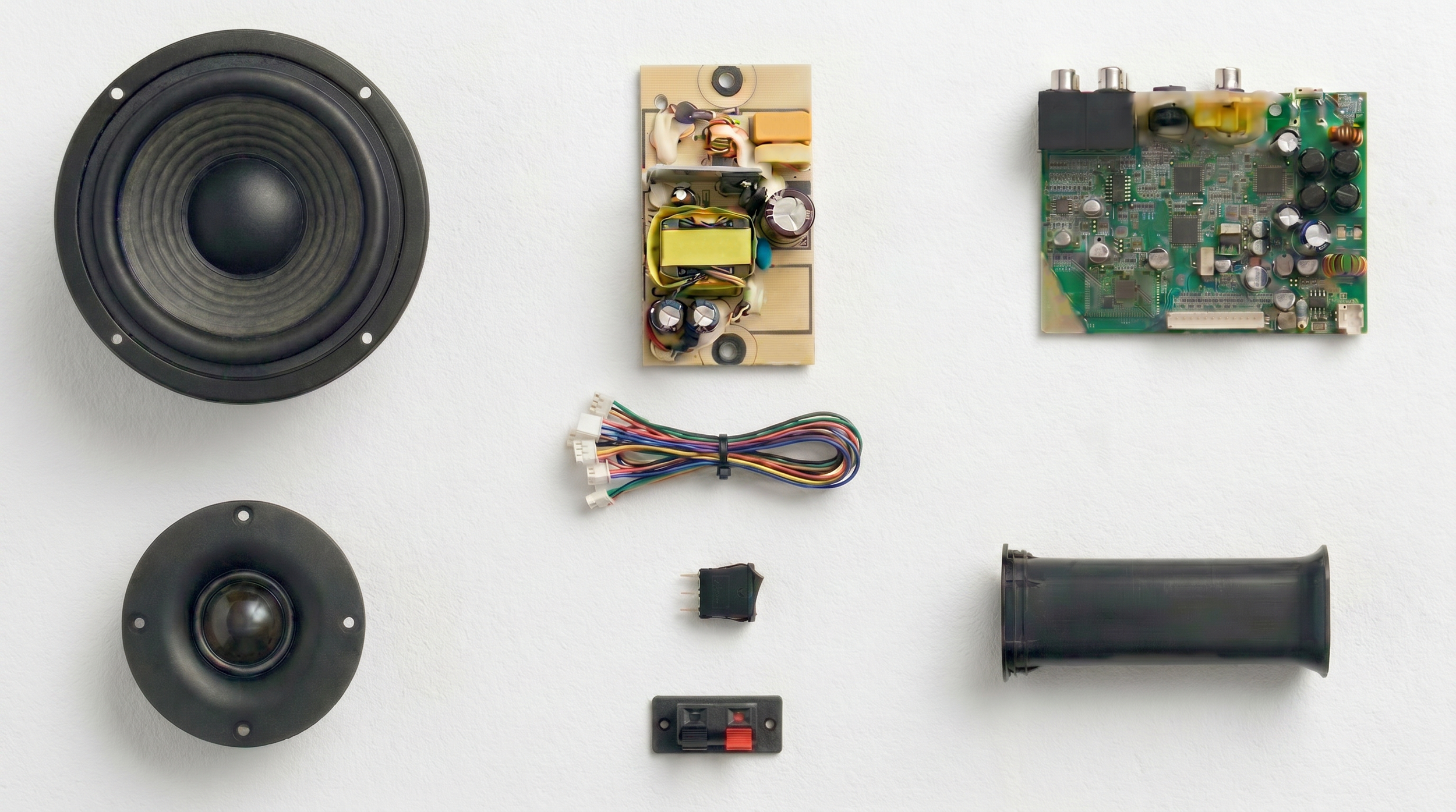

Teardown of the Control Group

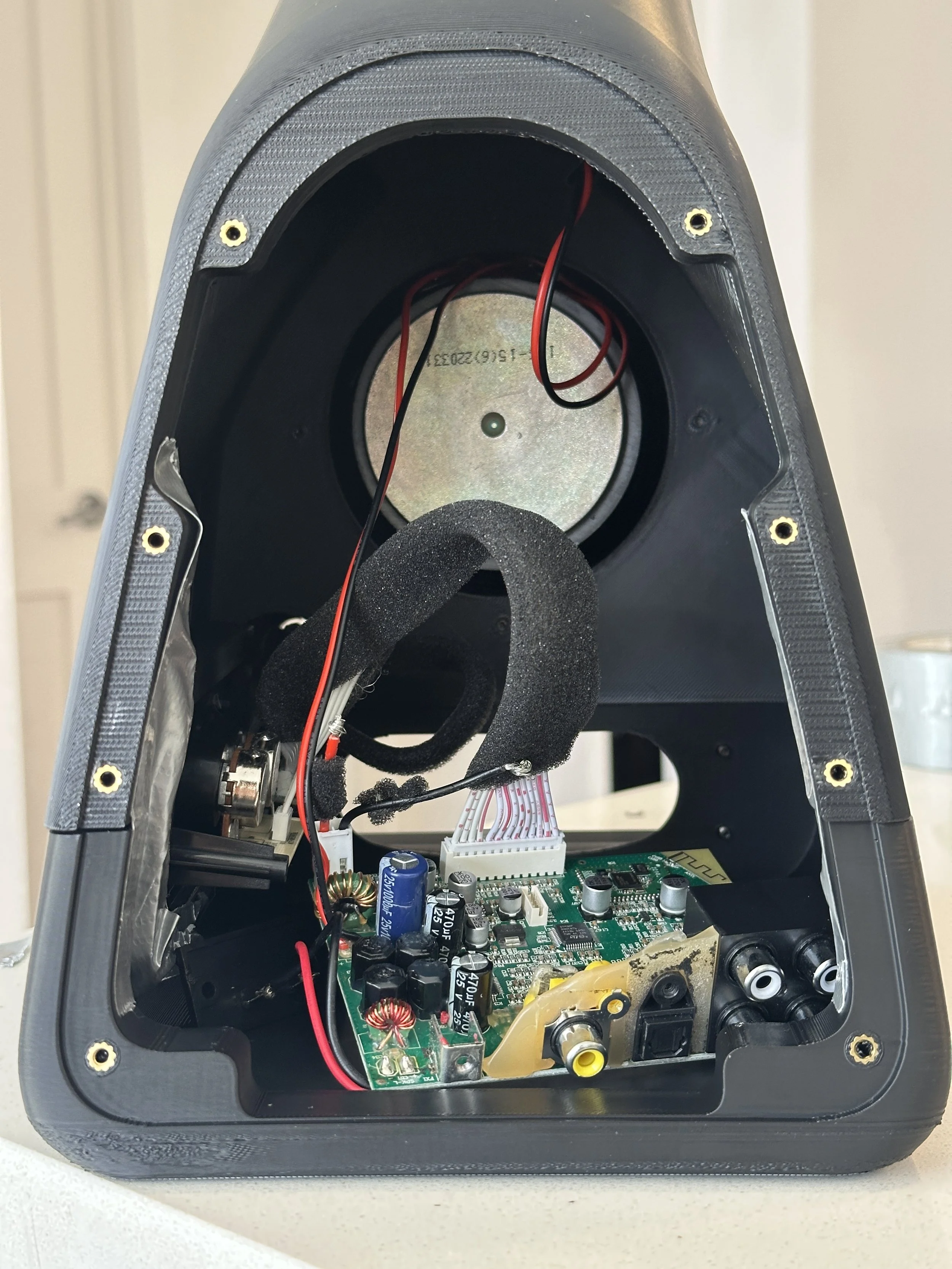

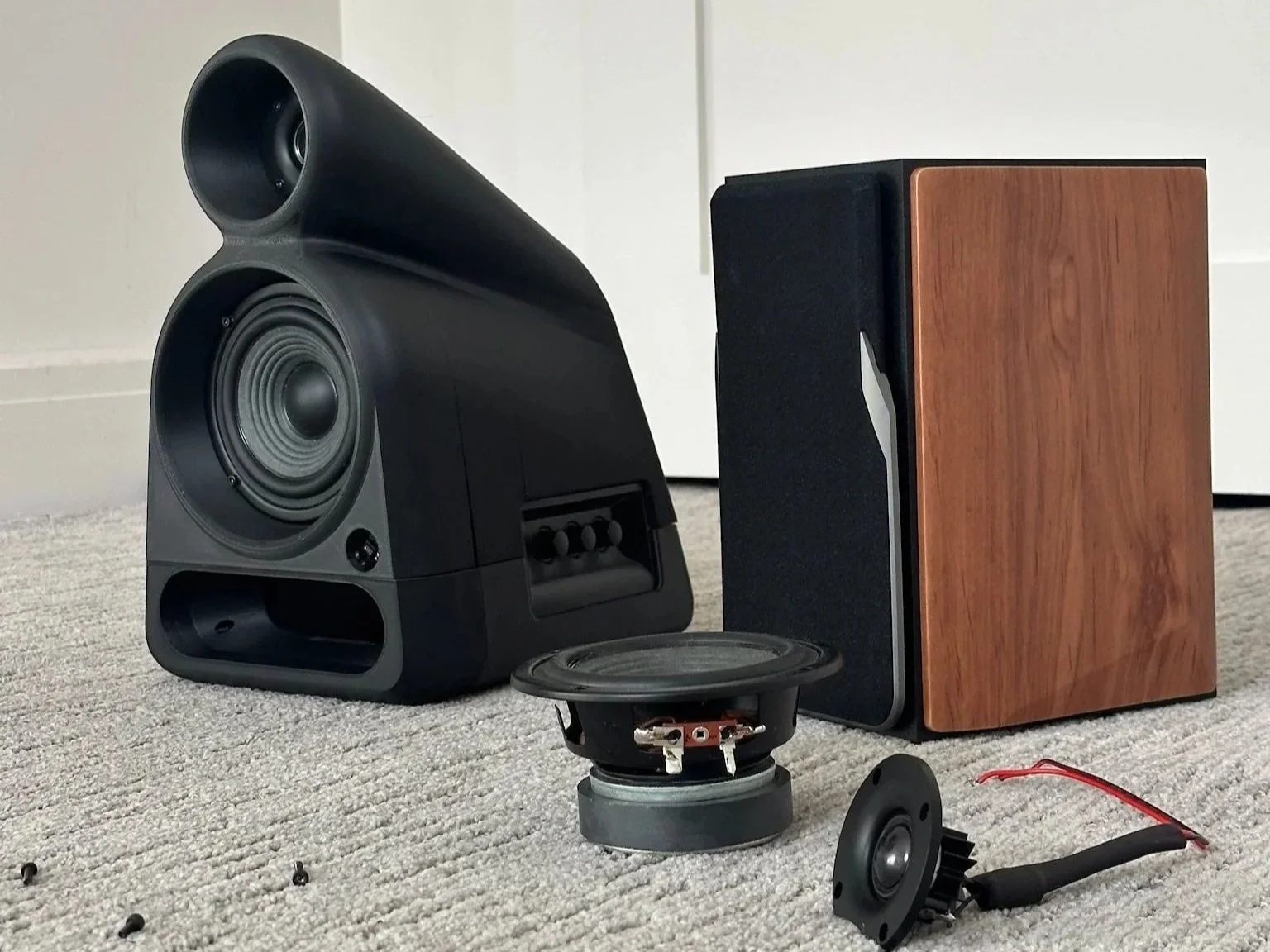

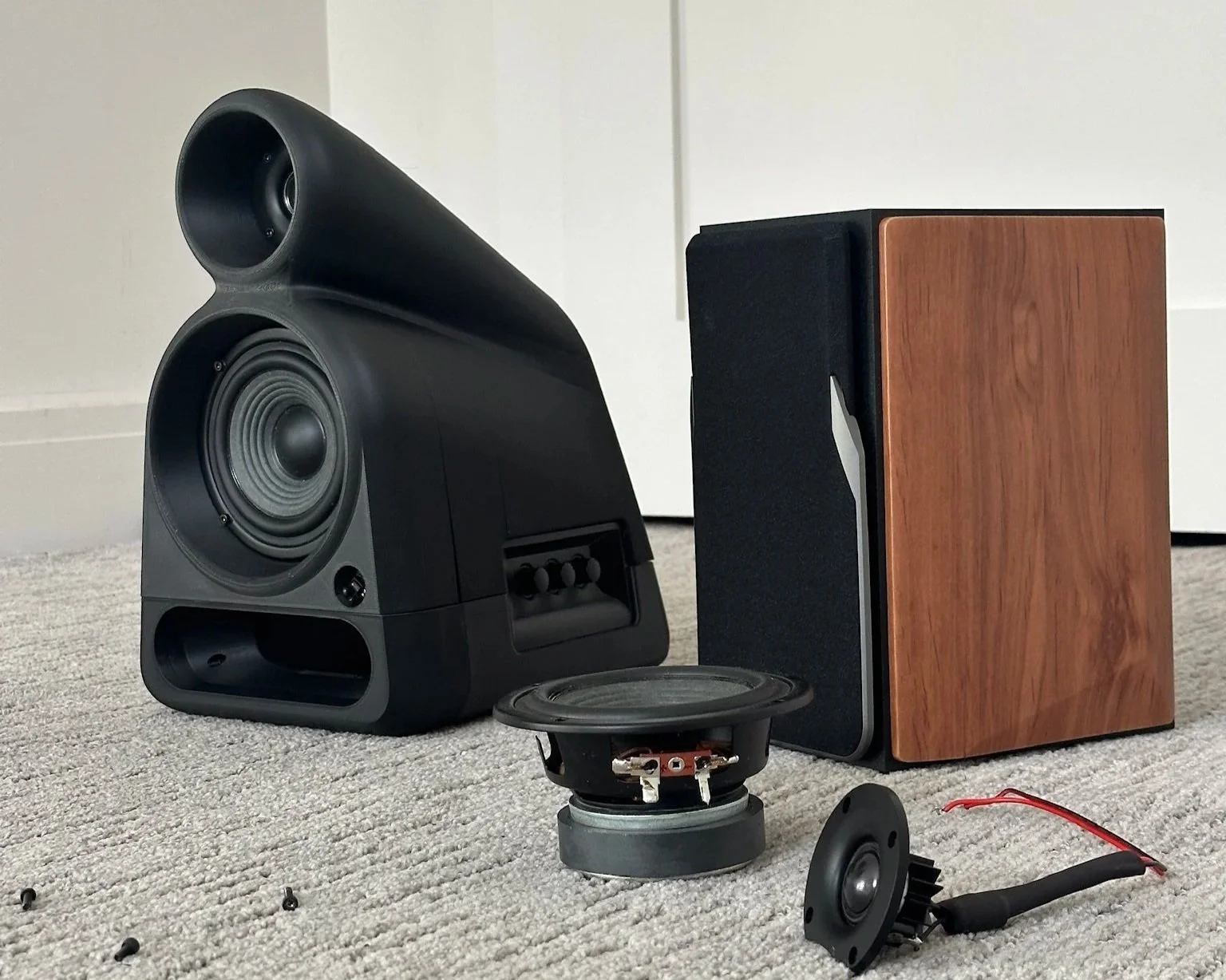

I disassembled the benchmark speaker to audit its internal architecture. Harvested electronics were treated as a strict scientific control group. Transplanting these identical components isolated cabinet geometry as the single performance variable, proving that the acoustic leap was achieved entirely by my structural architecture rather than a hardware upgrade.
The more inert the better
To find an acoustically inert enclosure substrate, I used a custom-engineered impact rig. By dropping a steel pellet from a fixed height onto the center of each suspended material block, I delivered an identical mechanical impulse to every sample. I recorded the resulting frequency decay using Room EQ Wizard (REW) to measure exactly how fast each polymer naturally silenced itself.
The Infill Paradox: 30% gyroid infill was the most acoustically inert. Its open internal geometry creates miniature air-damping chambers that absorb vibrations better than dense 40% or 50% + grids.
Walls Over Infill: Using 6 solid outer walls increases structural bending stiffness far more efficiently than packing the inside with heavy, high-density infill.
Optimal Substrate: ASA was chosen over PETG. While PETG absorbs impact vibrations well, its low flexural modulus allows the cabinet to flex under acoustic pressure. ASA’s rigid properties completely resist this flexing.
Design Driven By Data

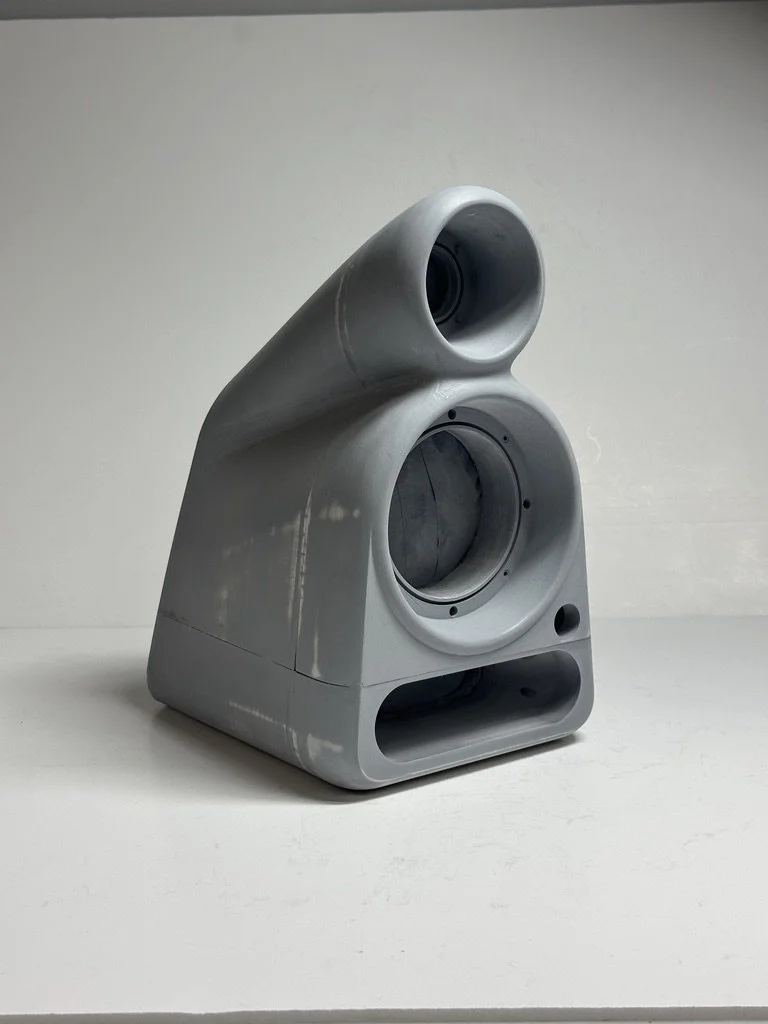

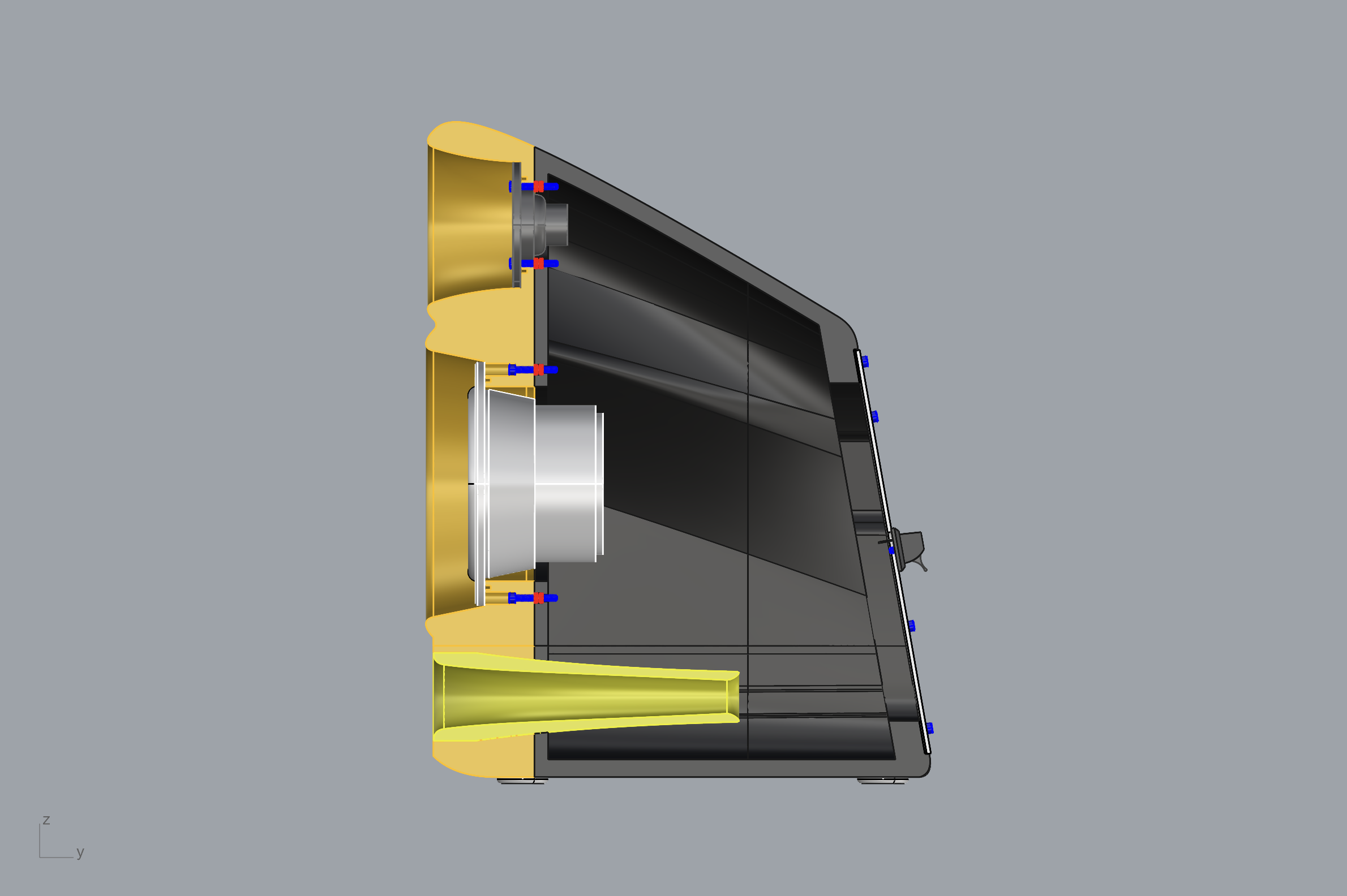

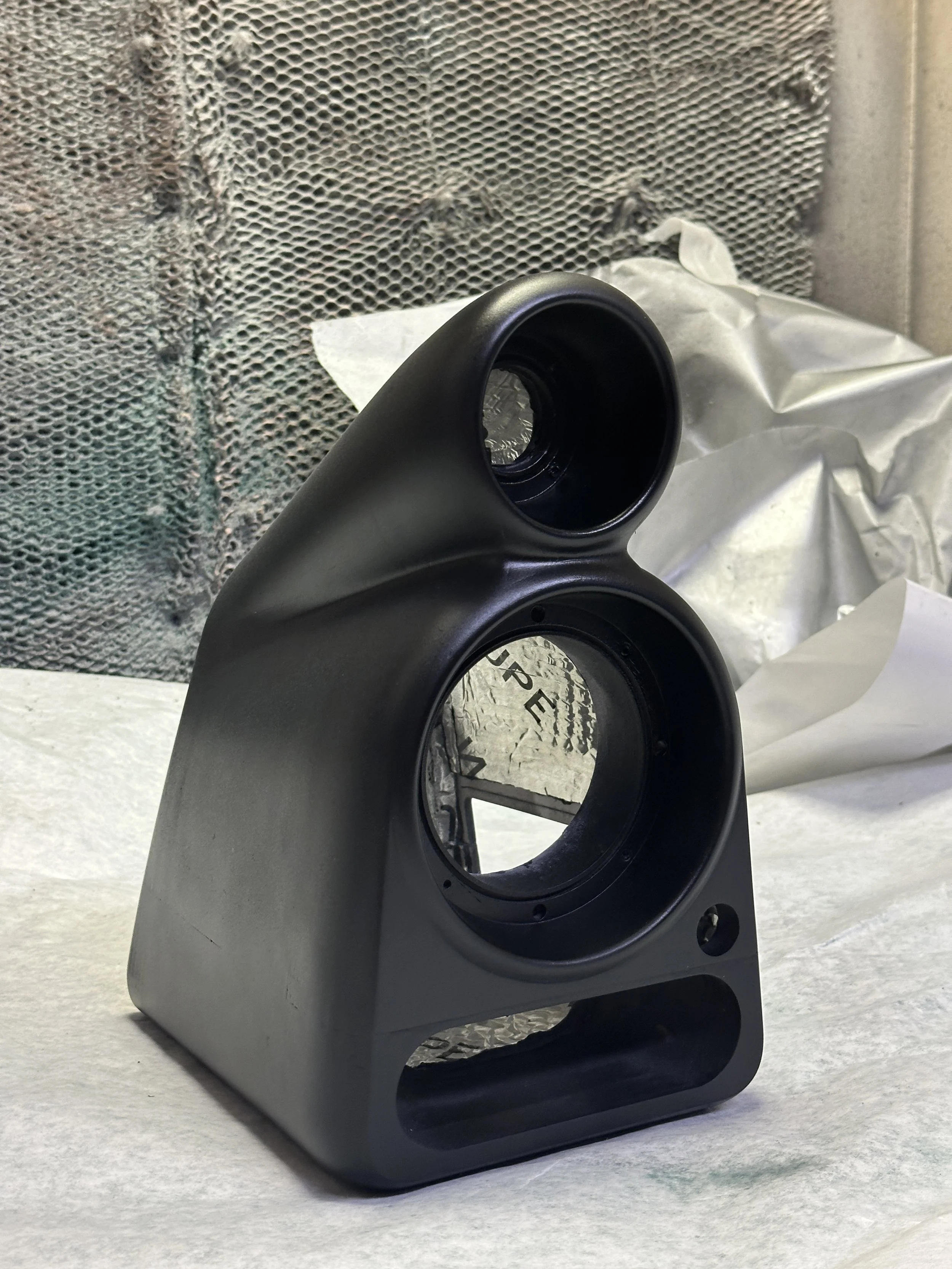

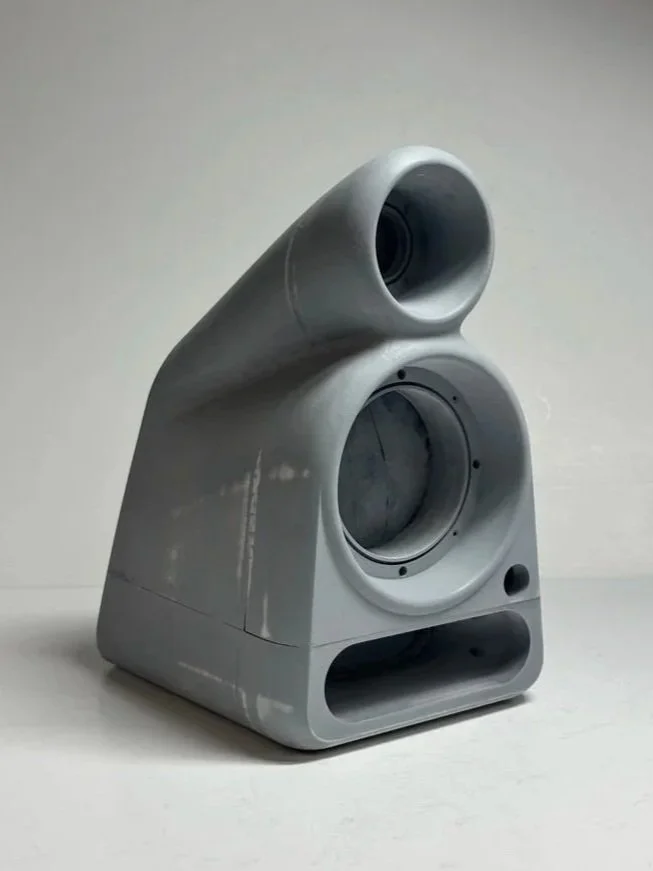

Material testing parameters directly dictated the product’s internal architecture. Developed in Rhino, this unified monocoque enclosure utilizes specific geometric features to completely eliminate parasitic resonances while maximizing acoustic performance.
Integrated Waveguide: Controls high-frequency dispersion and reduces harsh room reflections.
Non-Parallel Geometry: The sloped back wall entirely prevents internal standing waves and muddy mid-range resonance.
Isolated Tweeter Chamber: Protects the high-frequency driver from the intense back-pressure waves of the woofer.

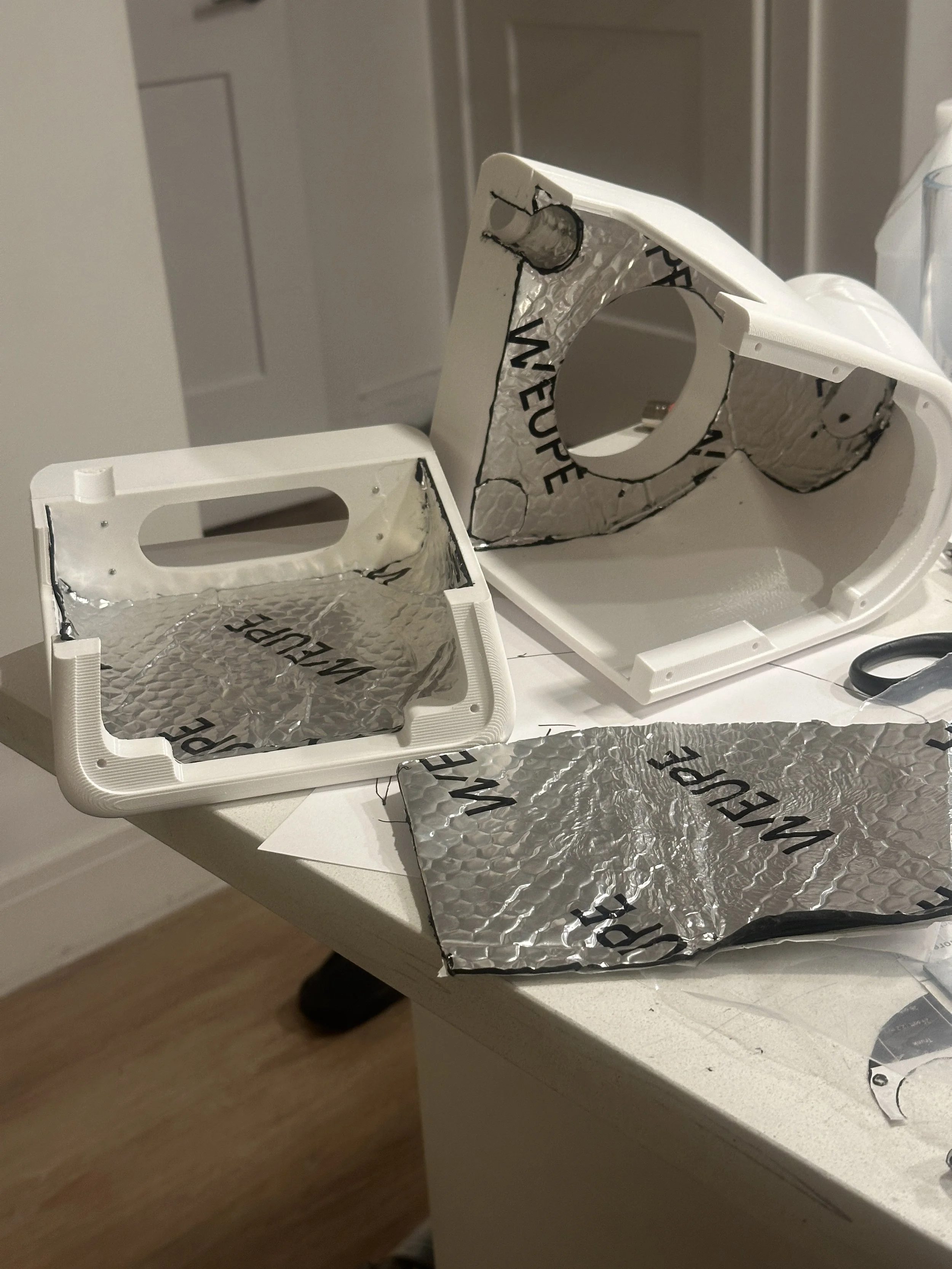

Sandwich Wall Structure: 6 walls paired with a 30% gyroid core to maximize structural stiffness and eliminate panel flex.
Mathematically Flared Port: Extends low-frequency bass response while preventing aerodynamic wind noise (chuffing).
